WHO WE ARE

Vonkprop Panel Worx work both nationally and internationally.

We pride ourselves on our high level of workmanship and expertise.

We aim to maintain a professional standard, and provide good service.

Workmanship guaranteed 12 months.

What We Do

Insulated Panel Specification

Insulated panels are available in different types of insulation and densities. The standard width of our insulated panel is 1190mm to the length required, available in a grooved or plain finish. The insulated panels are joined together with a tongue and groove system, providing the joints with a good vapour seal. Panels are designed to provide a fast, efficient and cost effective construction system.

The cladding material used on the insulation panels can vary from galvanized metal, chromadeck, aluminum, stainless steel and roof sheeting, available in different colours and finishes.

Insulation panels are used to construct cold rooms, freezers, hot rooms, houses, truck bodies and containers.

Polystyrene insulated panels

Our standard insulated polystyrene panels are manufactured from 15kg/m³ density, fire retardant polystyrene. Panels are cladded with 0.5mm chromadek on both sides; while a 2-part polyurethane glue is used to laminate the chromadek onto the polystyrene. Polystyrene panels are the most economical insulated panels available on the market.

Polystyrene as a material has a memory-restorable characteristic that enables it to handle movement and restore its original profile.

The following table gives an indication of the various panel thicknesses and temperature ranges:

Panel thickness	Temperature Range °C	Mass (kg/m²)	Average “U” Value (W/m²K)	Polystyrene Density
50mm	20 to 10	11.06	0.571	15kg/m³
75mm	10 to 5	11.47	0.408
100mm	5 to 0	11.87	0.316
125mm	0 to -5	12.26	0.259
150mm	-5 to -15	12.66	0.219
200mm	-15 to -30	13.07	0.167
250mm	-30 to -40	13.48	0.136

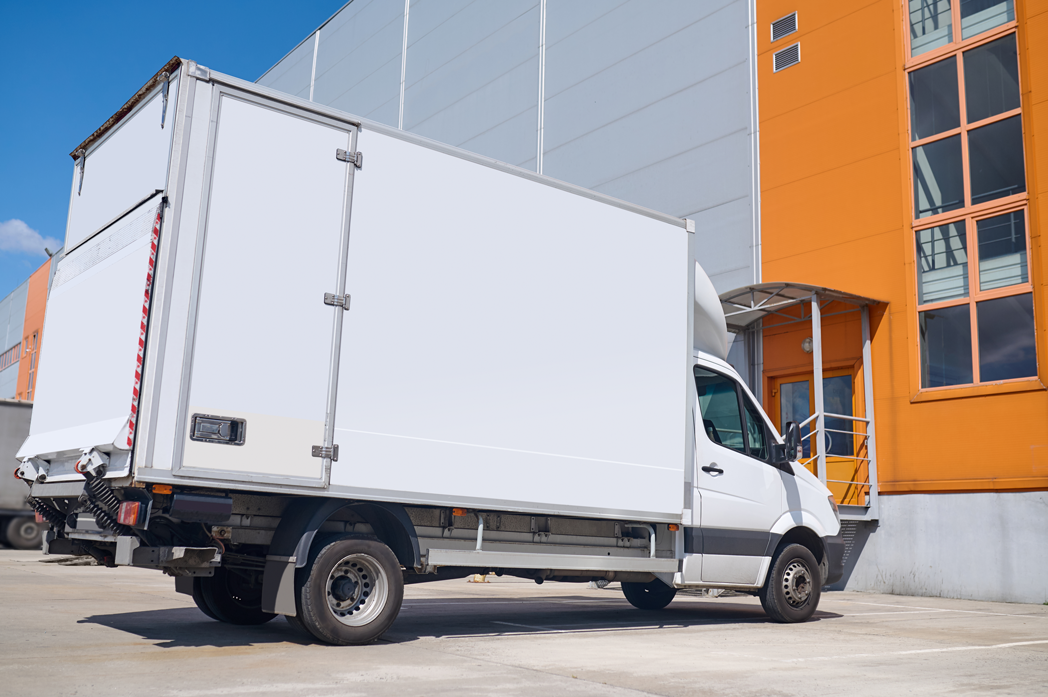

We now do truck bodies:

Polystyrene or polyurethane insulation can be provided.

High-quality chromadek siding is used as cladding and is exceedingly hygienic and easy to maintain.

Many variations are available, so please speak with our sales team.

Polyurethane/Polyisocyanurate panels

Our standard insulated polyurethane panels are manufactured out of 35kg/m³ density, fire retardant polyurethane. Panels are cladded with 0.5mm chromadek on both sides; while a 2-part polyurethane glue is used to laminate the chromadek onto the polyurethane.

Polyurethane is a good insulator, and an eco-friendly product which can be easily disposed of.

Insulation core properties:

Density	>35kgm³
Thermal conductivity	0.020W/mk
ODP	0
Compressive strength	>200KPa
Tensile strength	>300KPa
Water absorption	<2% / vol.
Operating temperature	-50°C to +100°C

Rockwool Panels

Our standard rockwool panels are manufactured of 100kg/m³density, fire resistant material. Panels are cladded with 0.5mm chromadek on both sides; while a 2-part polyurethane glue is used to laminate the chromadeck onto the Rockwool.

Rockwood is mainly used as a fire brake; its non-combustible can withstand temperatures of over 1000 °C and has excellent soundproof qualities.

Technical specifications:

Panel thickness	40mm – 200mm
Panel weight	15.5 kg/m² - 30.3 kg/m²
U value (W / m K)	0.21 – 0.72
Max acoustic property	50 SR I (db)
Fire rating	30 – 240 minutes

Basic Materials

Sealants

Mastic sealants are used for vapour seals between joints, under base channels and base angles. Provides flexibility between joints.
Polyeurethane sealants. Used for external vapour seals on joints, floors and bases to provide a double seal. Good for high humid conditions. Product contains anti fungal additives.
Silicon sealants. Mainly used as a cosmetic finish; product contains anti fungal additives.

Basics

Different types of basic materials are available ranging from aluminium to chromadeck, angles and channels.

Internal and external fixings

A wide selection of angles, inside corner radiuses can be used to provide the required finishes and standards.

Main roof supports

Aluminium T-Bars are used to suspend ceilings from existing roof structures, supported with slings which are fastened to turnbuckles to provide adequate adjustment to level ceilings.
Threaded rods can be used as a intermediate support.

Fasteners

Plug nails. Used for base fixings and to fix angles to brick walls.
Sealed rivets are used to fix extrusions to the insulated panel.
Stainless steel fasteners, (bolts, nuts, etc). Used to fix doors.

Doors

A wide variety of doors are manufactured to accommodate pedestrians and forklifts to move product in and around the facility.

All doors fitted will be manufactured out of the specified insulated panel and fitted with the necessary hardware to operate smoothly, maintain the required temperature and apply to safety standards.

Steel work

We also supply meat rails, goal posts, bollards, trash holds and crash barriers surrounding the insulated structure. Painted or hot dip galvanized.

Installation

Our installations teams vary in size according to the job required, and are equipped to do any installation. Our most experienced staff have been in the business for 40 years.

DIY Kits

We also sell panels and material ex factory for clients that prefer to install the panels themselves.

Technical information

All technical information and designs can be discussed with our site manager to achieve the desired result.

Most of our raw material is purchased in South Africa, except for rockwool which is imported from overseas. In case of a shortage other materials have to be imported as well.
